FP35 Accessories/Consumables List

The following is a list of all options and accessories available for the FONIX FP35.

Click on the Part Number to see a picture of the item.

FONIX FP35 Touch Hearing Aid Analyzer Accessories/Consumables Part Number
Accessories
Computer Programs (See the Computer Programs price sheet for more details)
WINCHAP WINCHAP V4.00
Auto Detect Battery Simulator pill set (includes #10, #13, #675, #312) 180-0022-00
Auto Detect Battery Simulator pill #AA, Black 059-3011-00
Telewand for ANSI 96/03 telecoil measurements 043-1050-00
Demonstration Ear with stand 180-0018-00
Additional Accessories
Ear Hooks
Wedge style 043-2043-00
Children’s wedge style 043-3043-00
Additional Accessories for FP35 analyzers (board version 08 and above) Serial No. required
Internal Speaker Cable (1ft long, stereo 3.5mm both ends) 119-0363-00
Cable, Y 1/4” stereo plug to 2 1/4” mono plugs (RECD insert Y cable package) 119-0344-00
Additional Accessories for FP35 analyzers (board version 07 and below) Serial No. required
Y-Cable, 3.5 mm x 1/4 in. module plug for Dual Insert Earphones 119-0341-00
Screening Audiometer Option with software and earphone calibration adapter FP35 AUD
Consumables
Paper roll 026-0019-00
Probe tubes, package of 25 074-0020-00
Insert earphone accessories
Package of 50 medium eartips 025-0670-00
Package of 50 small eartips 025-0671-00
Package of 24 large eartips 025-0672-00
Sound tube replacement 042-0526-00
Nipple for sound tube 042-0532-00
Dry erase marker 006-0065-00
Blue Stik (previously called “Fun Tak”) 033-0002-00
Battery Simulator Pills (12” cable), Autodetecting
#675 Blue 059-3004-00
#13 Orange 059-3005-00
#312 Brown 059-3006-00
#10 Yellow 059-3010-00
#AA Black 059-3011-00
Auto Detect Battery Simulator pill set (includes #10 #13 #675 #312) 180-0022-00
Software Upgrade/Add Options Post Manufacture (Serial No. required)
OES, including MZ couplers FP35 OES
Composite/Digital Speech FP35 COMP/UP
Additional test sequence, ANSI 96, ANSI 03, IEC 94, IEC 05, ISI, or JIS
Replacement parts
Real-ear equipment
External Real-ear speaker 034-2261-02
Probe speaker cables FP35 analyzers (board version 08 and above), 3.5 mm plug
25 ft 119-0187-01
Probe speaker cable for FP35 (board version 07 and below), modular plug
10 ft 119-0179-01
Speaker post extension 034-1533-02
Mounting sleeve for probe microphone 044-1204-00
Mounting sleeve for reference microphone 044-1206-00
Probe calibration clip 044-0200-00
Speaker stand, floor model without speaker 030-0020-02
Standard Couplers
HA-1 2-cc direct access coupler 044-1031-01
HA-2 2-cc coupler w/ Ear Level Adapter 044-2029-01
HA-2 2-cc coupler (body only) 044-1029-01
CIC coupler for CIC Option 044-1027-01
Open Fit coupler 044-1023-01
Rectangular reference microphone adapter 044-0208-00
Calibrator adapter, 14mm to 1 in 044-1006-01
Probe adapter, 14mm to probe 044-0025-01
OES Option Couplers
MZ-1 coupler 044-1024-01
MZ-2 coupler 044-1022-01
MZ-3 coupler 044-1021-01
Ear level adapter for HA and MZ couplers 044-1003-00
Misc Couplers and Related Repair Parts
Earphone calibration adapter 044-1020-01
SB-1 2-cc for universal-fit hearing aids (9-11mm dia.) 044-2031-01
Ear Hook assembly for M767 Microphone
Slide Ear Hook 044-0070-00
Ear Hook with Velcro 043-2051-04

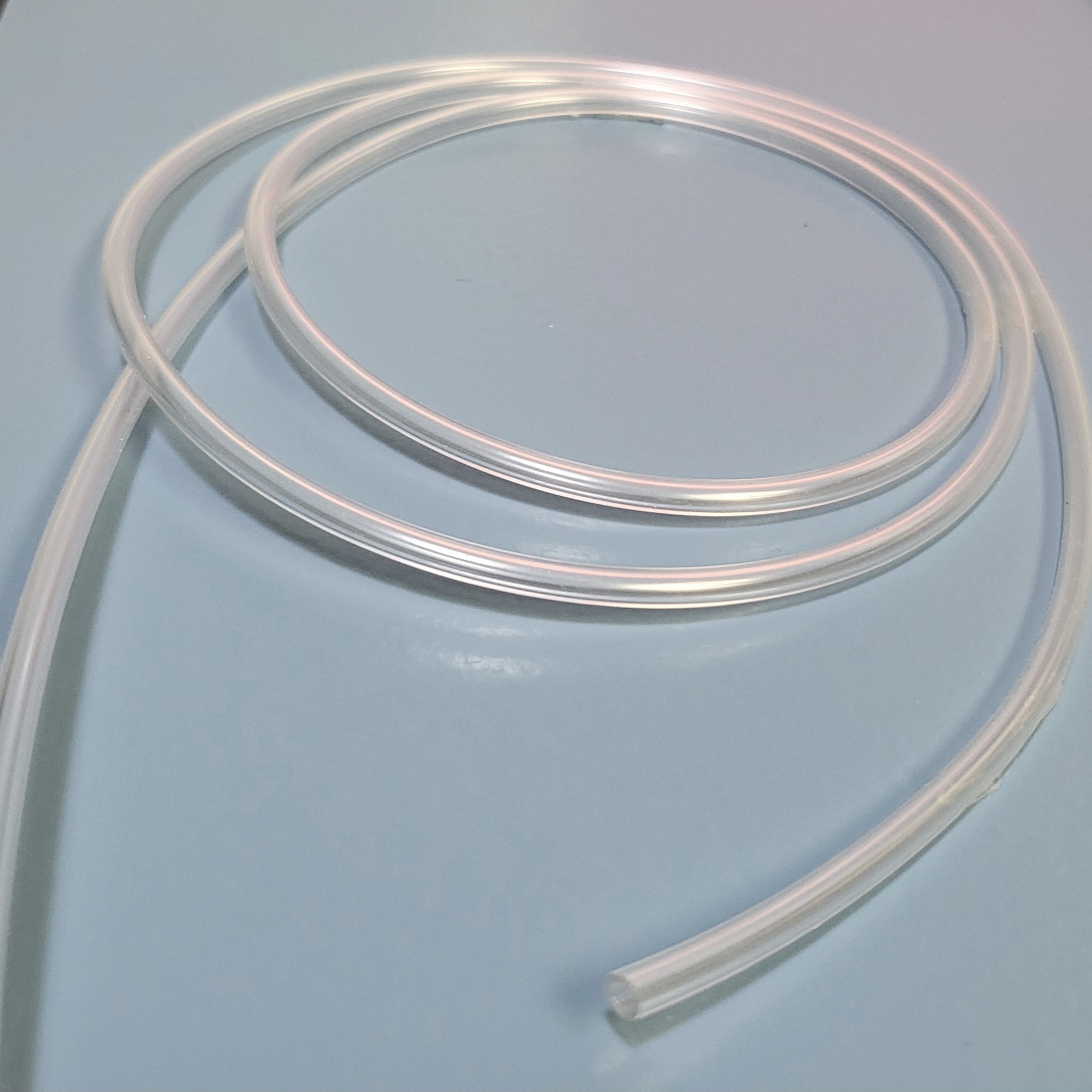

#13 tubing for ear level adapter (price per inch) 074-0006-00
“O” Ring set of 3 for HA-2 042-1500-00
“O” Ring set of 5 large 042-1502-00
Microphones
M767 Integrated probe & reference microphone set M767 RoHS
Moduler-Integrated earhook probe microphone set M767X
M367 coupler microphone M367 RoHS
Other
USB serial cable, 5 meters 072-1311-00
RS232 cable (integrated) for ’08 board design only 119-1400-00
FP35 Operator’s Manual(Download Only) 010-0013-13
FP35 Quick Reference Guide (Download Only) 010-0021-11
Calibration
Calibration/FP35, Factory Calibration Certificate FP35 CAL/CE
