The following is a list of all options and accessories available for the FONIX 8000. It is also available in PDF Format. Please contact Frye Electronics or your local distributor for pricing information.
Click on the Part Number to see a picture of the item.
| FONIX 8000 HEARING AID TEST SYSTEM | Part Number |
|---|---|
| FONIX 8000 Module Includes one of the following test sequences: ANSI 09/03/96/87 (including Telewand), IEC 05/94, Profiler, or JIS. Note: Monitor sold separately |
8000 |
| Chamber Packages with FONIX 8000 module purchase | |
| 8120 polar plot chamber Includes M1958E coupler microphone, magnetic HA-1, HA-2, and CIC couplers, ear level adapter, auto detecting battery simulator pills (#13, #675, #10 and #312), rotator accessories for BTE and ITE directional tests, blue stik, extra paper, USB computer cable, and removable test surface. |
FC8120 |
| 8050 chamber (no Polar Plot) Includes M1958E coupler microphone, HA-1, HA-2, and CIC couplers, ear level adapter, auto detecting battery simulator pills (#13, #675, #10 and #312), blue stik, extra paper, and USB computer cable. |
FC8050 |
| Remote Chamber Module (for connection to sound chambers other than the 8050/8120) Includes module, cable, M1950E microphone, HA-1, HA-2, and CIC couplers, blue stik, and coupler adapter. (Chamber not included) |
REMOTE |
| Real-Ear for FONIX 8000 HEARING AID TEST SYSTEM | |
| Probe microphone (M767) with an advanced integrated ear hook design, sound field speaker, either a floor stand or a swing arm (which can be attached to a wall or desk), Visible Speech, Improved Digital Speech signal for testing open fit hearing aids with probe remote module, monitor headset, calibration adapters, probe tubes, and marking pen. | 8000 PROBE/STAND OR 8000 PROBE/ARM |
| Same as above with additional M767 microphone for Dual probe. Special price when purchased with 8000 | 8000 PROBE/STAND/DUAL OR 8000 PROBE/ARM/DUAL |
| Options ordered with purchase | |
| Additional test sequences (Specify ANSI (including telewand), IEC, or JIS) | |
| OES Option including MZ couplers | 8000 OES |
| OES Option (No MZ couplers) | 8000 OES w/o |
| VA-CORFIG | 8000 VA-CORFIG |
| Profiler | 8000 PROFILER |
| Accessories | |
| Computer Programs (See the Computer Programs price sheet for more details) | |
| FONIX NOAH Real-ear Module | FNMV2.22AN |
| WINCHAP | WINCHAP V3.00 |
| FONIX Press & Go | PRESS&GO V1.11 |
| FONIX Troubleshooter | TSHOOT V1.11 |
| Android Remote Keyboard: Includes Android tablet and pre-installed FONIX 8000 Keyboard App. (Requires 8000 software v2.14 and up). | 8000 BLUEKEY |
| RECD package. Includes insert earphone with assortment of eartips. | 015-3418-01 |
| LCD Monitor 17in. | 058-0078-00 |
| Hearing instrument programming cable (HiPro cable), 6ft. | 072-0317-00 |
| Speaker stand, tabletop model | 030-0021-00 |
| Demonstration Ear with stand | 180-0018-00 |
| Auto Detect Battery Simulator pill set (includes #10, #13, #675, #312) | 180-0022-00 |
| Additional Accessories | |
| Infant/Child Headband Package including infant, child, and adult headbands, six bendable earhooks, and two sets of animal ears. | 180-0017-01 |
| Consumables | |
| Paper roll | 026-0006-00 |
| Probe tubes, package of 25 | 074-0020-00 |
| Insert earphone accessories | |
| Package of 50 medium eartips | 025-0670-00 |
| Package of 50 small eartips | 025-0671-00 |
| Package of 24 large eartips | 025-0672-00 |
| Sound tube replacement | 042-0526-00 |
| Nipple for sound tube | 042-0532-00 |
| Dry erase marker | 006-0065-00 |
| Blue Adhesive Putty | 033-0002-00 |
| Battery Simulator Pills (12in. cable), Autodetecting | |
| #675, Blue | 059-3004-00 |

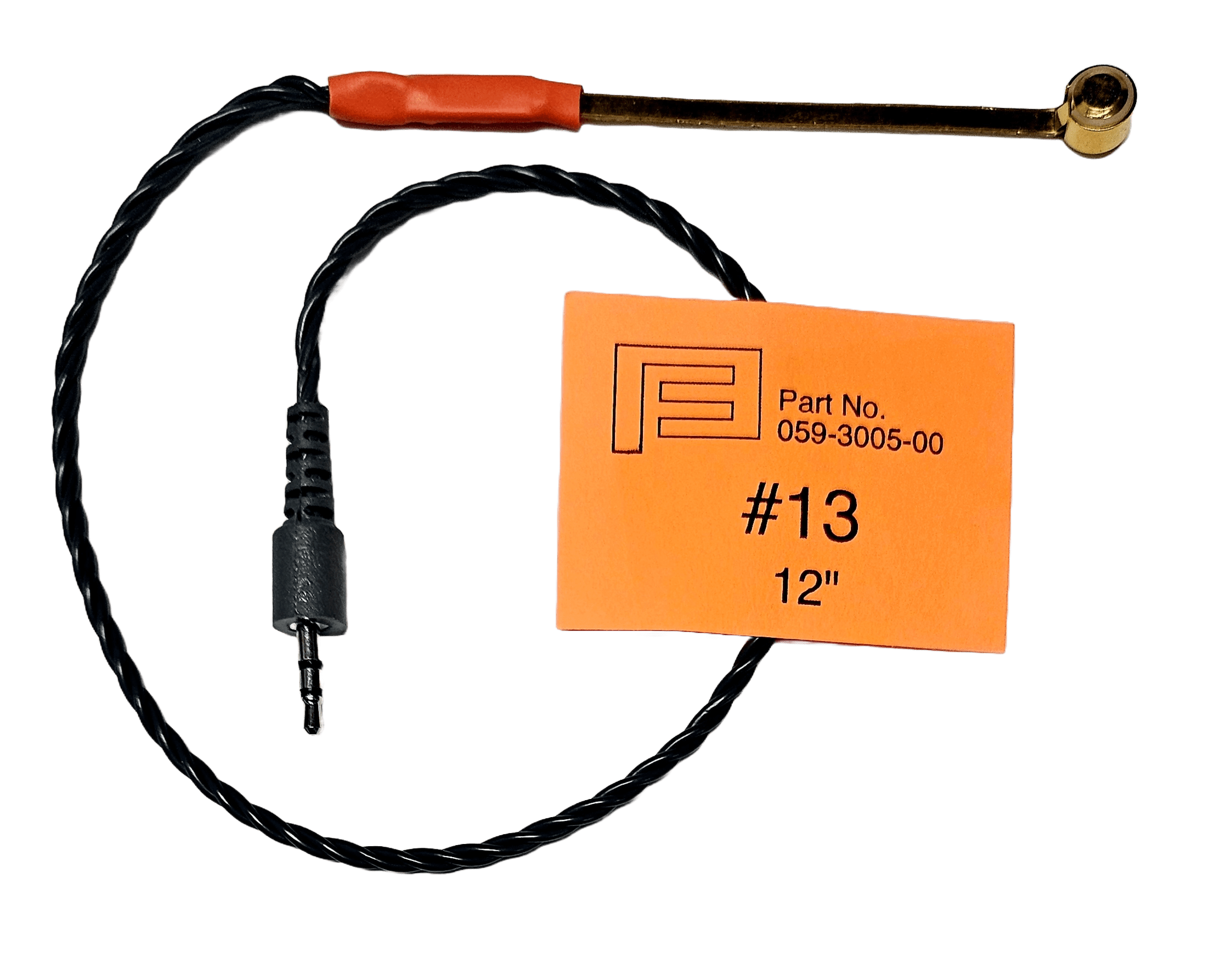

| #13, Orange | 059-3005-00 |

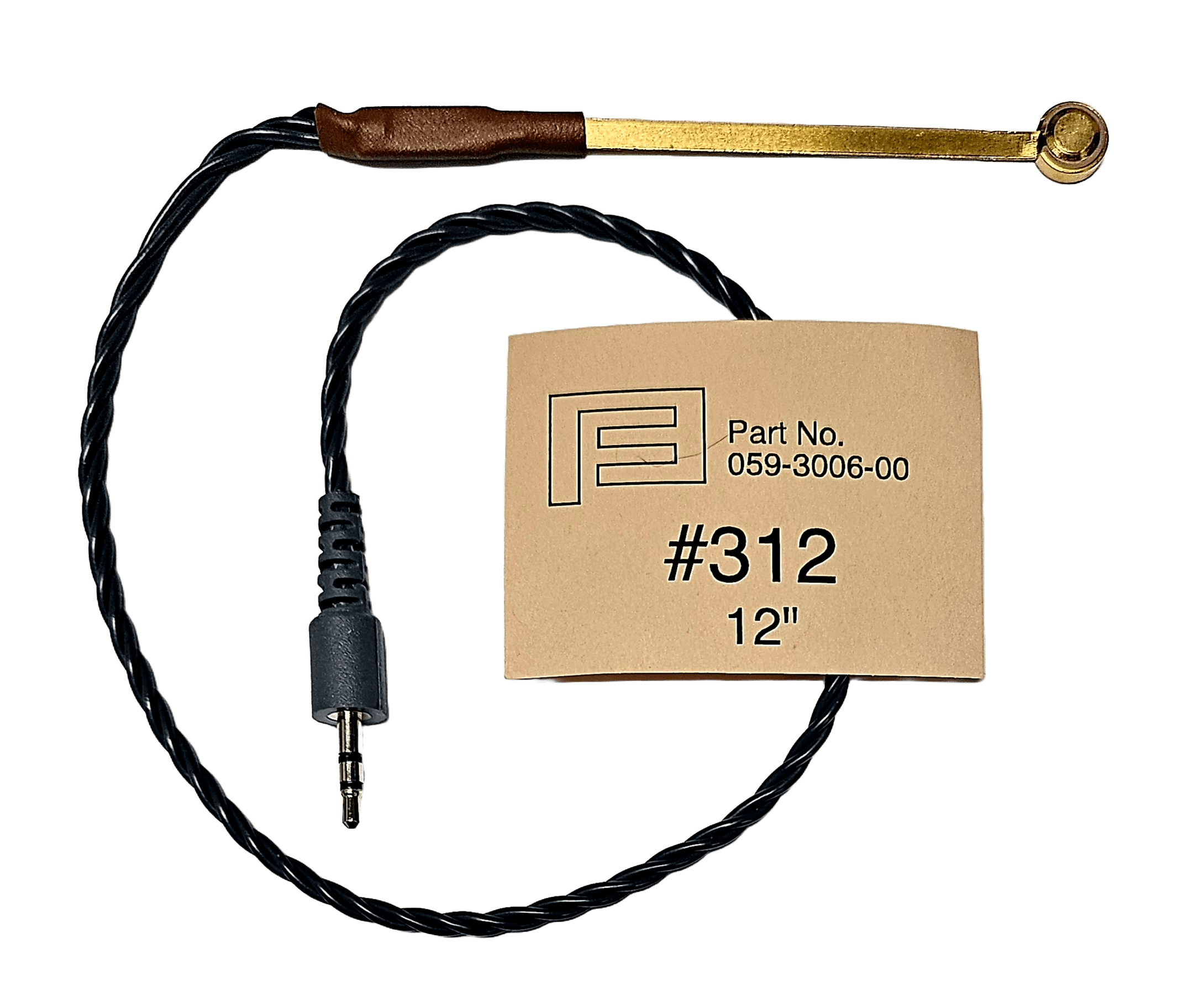

| #312, Brown | 059-3006-00 |

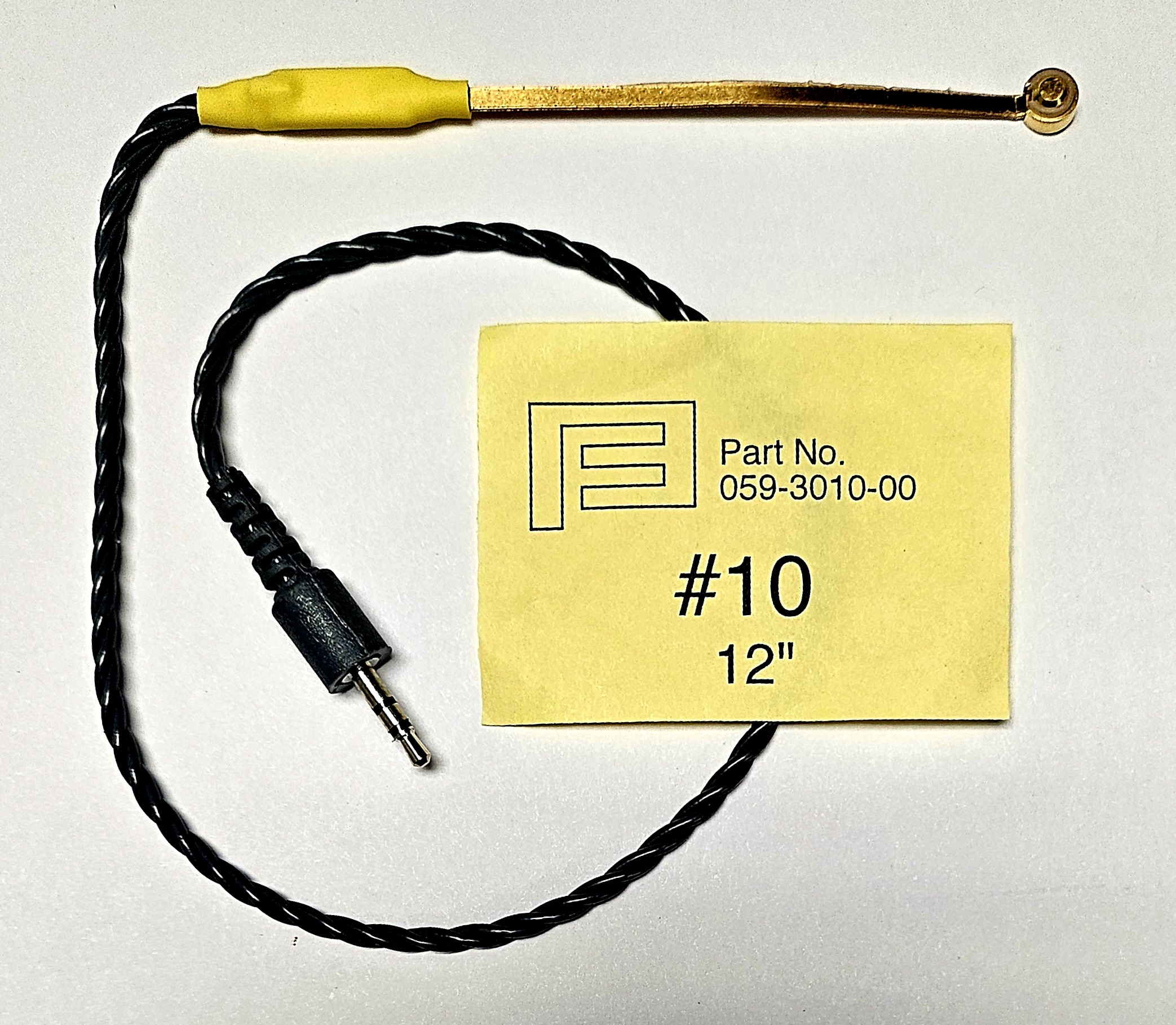

| #10, Yellow | 059-3010-00 |
| #AA, Black | 059-3011-00 |
| Add Options Post Manufacture | |
| Additional test sequence, ANSI (including telewand), IEC, or JIS | |
| OES with MZ-1, MZ-2, and MZ-3 couplers | 8000 OES/UP |
| OES Option (No MZ couplers) | 8000 OES w/o/UP |
| VA-CORFIG | 8000 VA-CORFIG/UP |
| Profiler | 8000 PROFILER |
| Replacement Parts | |
| Real-ear Equipment | |
| Speaker swing arm package | ACC/SWING/8000 |
| Real-ear speaker | 034-2261-00 |
| Speaker swing arm without speaker. Includes cable with 3.5 mm plug | 034-4456-01 |
| Monitor headset with 1/4in. adapter | 015-1214-00 |
| Speaker stand, floor model | 030-0020-02 |
| Sound chamber Equipment | |
| 8120 Sound chamber | FC8120 |
| 8050 Sound chamber | FC8050 |
| Telewand for ANSI 96/03 telecoil measurements | 043-1053-00 |
| Sound Chamber Cable (8050/8120) | 119-0282-00 |
| Clamp Assembly BTE (8120) | 034-1974-00 |
| BTE Clamp Liners (set of 5) (8120) | 011-0002-00 |
| Rotator Post ITE (8120) | 053-1012-00 |
| Rotator Post BTE (8120) | 053-1013-00 |
| Removable Test Surface (8120) | 053-1014-00 |
| Foam Kit for 8050, includes seal | FOAMKIT FC8050 |
| Foam Kit for 8120 | FOAMKIT FC8120 |
| Couplers & Adapters | |
| HA-1 2-cc direct access coupler | 044-1031-01 |
| HA-2 2-cc coupler | 044-1029-01 |
| RIC Coupler Package, SB-1 2-cc coupler for universal-fit hearing aids, 9-11mm dia., Eartip, Sebotek 9mm, package of 5 | RIC COUPLER PACKAGE |
| SB-1 2-cc coupler for universal-fit hearing aids, 9-11mm dia. | 044-2031-01 |
| Eartip, Sebotek 9mm | TIP309 |
| HA-1 Magnetic Coupler (for the 8120) | 044-5031-01 |
| HA-2 Magnetic Coupler (for the 8120) | 044-5029-01 |
| RIC Magnetic Coupler Package (for the 8120), SB-1 2-cc Magnetic Coupler for universal-fit hearing aids, 9-11mm dia., Eartip, Sebotek 9mm, package of 5 | RIC MAG COUPLER PACKAGE |
| SB-1 2-cc Magnetic Coupler for universal-fit hearing aids, 9-11mm dia. | 044-3031-01 |
| Adapter 14 mm to 1 in. (for sound level calibrators) | 044-1006-01 |
| Ear Level Adapter | 044-1003-00 |
| CIC coupler for CIC Option | 044-1027-01 |
| Open Fit coupler | 044-1023-01 |
| Rectangular reference microphone adapter | 044-0208-00 |
| Probe adapter, 14mm to probe | 044-0025-01 |
| OES Option Couplers | |
| MZ-1 coupler | 044-1024-01 |
| MZ-2 coupler | 044-1022-01 |
| MZ-3 coupler | 044-1021-01 |
| Ear level adapter for HA and MZ couplers | 044-1003-00 |
| Misc Couplers and Related Repair Parts | |
| HA-3 modified coupler | 044-1015-04 |
| HA-1 coupler for B&K 1in. microphone | 044-1009-00 |
| Adapter sleeve for B&K HA-1 coupler | 044-1008-00 |
| Ear Hook assembly for M767 Microphone | |
| Slide Ear Hook | 044-0070-00 |
| Ear Hook with Velcro | 043-2051-04 |
| #13 tubing for ear level adapter, price per inch | 074-0006-00 |
| O-Ring set of 3 for HA-2 | 042-1500-00 |
| O-Ring set of 5 large | 042-1502-00 |
| O-Ring set of 4 for all couplers | 042-1504-00 |
| Microphones | |
| M1957E Elec. Microphone with 18in. cable | M1957E |
| M1958E Elec. Microphone with 18in. cable | M1958E |
| M1958E Elec. Microphone, Exchange | M1958EX |
| M1958E Microphone preamp, (No Mic Head) | M1958E-AMP |
| M1958E Microphone preamp Exchange, (No Mic Head) | M1958E-AMPX |
| M1950E Elec. Microphone with 6ft. cable | M1950E |
| M1950E Elec. Microphone Exchange, 7000 CE (w/Mic Head) | M1958EX |
| M1950E Microphone preamp, 7000 CE (No Mic Head) | M1950E-AMP |
| M1950E Microphone preamp Exchange, (No Mic Head) | M1950E-AMPX |
| M767 Integrated probe microphone | M767 |
| Moduler-Integrated earhook probe microphone set | M767X |
| Probe Mic Identification Kit Red/Blue | 180-0023-00 |
| Dummy Microphone | 041-0025-00 |
| Other | |
| Tablet, 7 inch, Bluetooth, 8000 Remote Keypad | TABLET |
| 8000 Operator's Manual | 010-0035-02 |
| 8000 Maintenance Manual | 010-0034-00 |
| Cable 6' USB ver.2 type a/b for computer connection | 072-0313-00 |
| USB Bluetooth Adapter/USB Cable Extension | BLUETOOTH ADAPTER |
